KW1M Single-stage gasifier

A gas company as producer (also called single section type), with large gas production, high gasification efficiency, adapt to the characteristics of a variety of coal, the wind is evenly distributed, simple operation, strong safety performance, is widely used in different industries.

According to the different needs of users, the gas KW1M system produced by our company has coal furnace automatic hydraulic system and manual coal feeding system two, the coal is unique, so that the coal falling material.

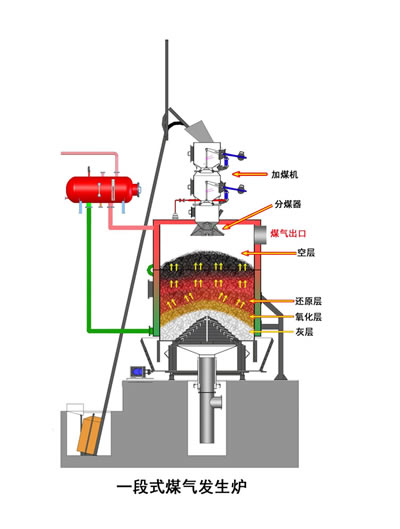

Structural characteristics

The furnace body structure: the water jacket structure, self-produced steam pressure of 49Kpa (or 294Kpa), can be directly into the gas stove as gasification agent, reduce the user burden of investment.

Stoker structure:Automatic coal feeding machine, hydraulic drive or motor drive, double bell, on board under the bell, drum bell and other board under the seal structure for the user to choose; manual coal type generally use double bell type, simple operation, convenient maintenance, good air tightness.

The cleaning mechanism:The cleaning system adopts hydraulic structure, adjustable pressure, ash evenly, is currently the most widely used method.

KW1MA gasifier technology parameter
